Model

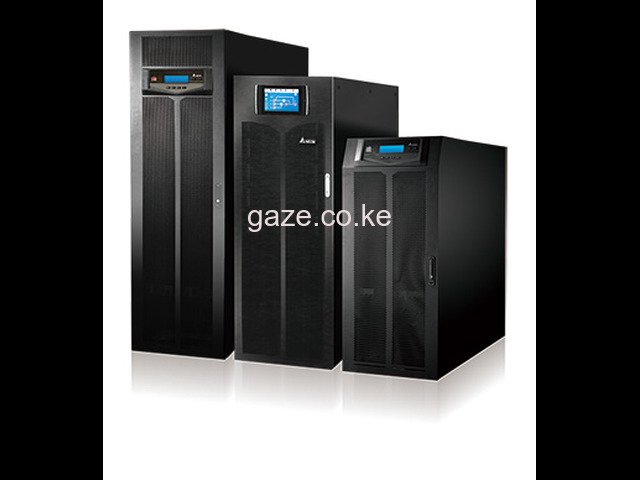

HPH-30KVA
Power Rating
30 kVA/Kw
InputNominal VoltageVoltage rangeFrequencyPower FactorCurrent Harmonic Distortion
380/220Vac, 400/230Vac, 415/240Vac (3 phase, 4-wire + G)[20-40K]: 300~477 Vac (full load), 228~300 Vac (70%~100% load)[60-120K]: 332~477 Vac (full load), 228~332 Vac (63%~100% load)40~70Hz> 0.99 (full load)< 3%
OutputVoltageVoltage RegulationVoltage Harmonic DistortionOverload CapabilityOutput Power FactorFrequency
380/220Vac, 400/230Vac, 415/240Vac (3 phase, 4-wire + G)± 1 %[20-40K]: < 1.5% (linear load)[60-120K]: < 2% (linear load)≤105 %: continuous106% ~ ≤125%: 10 minutes126% ~ ≤150%: 1 minute>150%: 1 second150/60Hz +/- 0.05Hz
| Model |
HPH-30KVA |
| Power Rating |
30 kVA/Kw |
Input
Nominal Voltage
Voltage range
Frequency
Power Factor
Current Harmonic Distortion |
380/220Vac, 400/230Vac, 415/240Vac (3 phase, 4-wire + G)
[20-40K]: 300~477 Vac (full load), 228~300 Vac (70%~100% load)
[60-120K]: 332~477 Vac (full load), 228~332 Vac (63%~100% load)
40~70Hz
> 0.99 (full load)
< 3% |
Output
Voltage
Voltage Regulation
Voltage Harmonic Distortion
Overload Capability
Output Power Factor
Frequency |
380/220Vac, 400/230Vac, 415/240Vac (3 phase, 4-wire + G)
± 1 %
[20-40K]: < 1.5% (linear load)
[60-120K]: < 2% (linear load)
≤105 %: continuous
106% ~ ≤125%: 10 minutes
126% ~ ≤150%: 1 minute
>150%: 1 second
1
50/60Hz +/- 0.05Hz |
