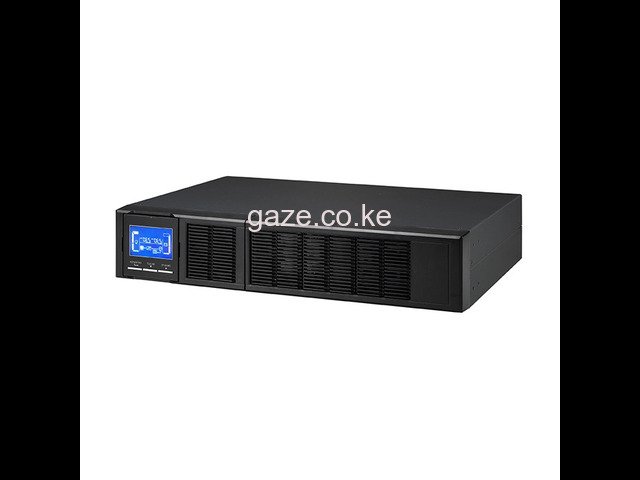

Brand: Mecer
Model: ME-3000-WPRU
Capacity: 3000 VA / 2400 W
Battery Type: 12V / 9 Ah
Number of Batteries: 6
Input Voltage Range:
Low Line Transfer: 160/140/120/110 VAC ± 5%
High Line Transfer: 300 VAC ± 5%
Output Voltage: 208/220/230/240 VAC
Frequency Range: 40 Hz – 70 Hz (Auto Sensing)
Transfer Time:
AC Mode to Battery Mode: Zero
Inverter to Bypass: 4 ms (Typical)
Waveform (Battery Mode): Pure Sine Wave
Efficiency (Peak):
AC Mode: 87%
Battery Mode: 85%
Charging Current: 1.0 A
Charging Voltage: 82.1 VDC ± 1%
Dimensions (DxWxH): 482 x 300 x 130 mm (1U Rackmount)
Net Weight: 12 kg
Noise Level: Less than 45 dB at 1 meter
